 Post subject: Re: Across the country in a 73 Wagon
PostPosted: Fri Mar 15, 2013 10:11 pm
User avatar

Joined: Sun Oct 25, 2009 7:56 pm
Posts: 429
Location: Bellingham, WA
Looking good! AMG spark plug cover fits nicely with that hyundai valve cover!

_________________
91 Galant VR4 1350/2000
76 Colt Galant Coupe
75 Colt Galant Wagon
77 Colt Galant Wagon


Top
 Profile

 Post subject: Re: Across the country in a 73 Wagon
PostPosted: Tue Apr 02, 2013 7:13 pm
User avatar

Joined: Sun Jan 22, 2012 12:17 pm
Posts: 148
Location: Indiana
good news; ordered a new set of front wheels so i can slam the front, get rid of my wheel gap!

in the mean time; had to chase down my brake lights and rewire them, system failed in the turn signal switch, but it gave me the change to create independent brake lights, segregated from the turn signals, might add a 3rd brake light now.

getting her ready for some warm weather:


_________________
1973 Mitsubishi Galant Wagon, turbo, 4G63, fuel injected, on work wheels.
1991 Mitsubishi Galant VR4
follow me on instagram: @incorporatedx


Top
 Profile

 Post subject: Re: Across the country in a 73 Wagon
PostPosted: Thu Apr 04, 2013 1:50 am
User avatar

Joined: Sun Oct 25, 2009 7:56 pm
Posts: 429
Location: Bellingham, WA
Glad the rewiring trick worked out!

Warm weather has already arrived in the PNW now :mrgreen:, low 60s and sun here! 8)

_________________
91 Galant VR4 1350/2000
76 Colt Galant Coupe
75 Colt Galant Wagon
77 Colt Galant Wagon


Top
 Profile

 Post subject: Re: Across the country in a 73 Wagon
PostPosted: Mon Apr 22, 2013 8:15 pm
User avatar

Joined: Sun Jan 22, 2012 12:17 pm
Posts: 148
Location: Indiana
finally lowered the front...


_________________
1973 Mitsubishi Galant Wagon, turbo, 4G63, fuel injected, on work wheels.
1991 Mitsubishi Galant VR4
follow me on instagram: @incorporatedx


Top
 Profile

 Post subject: Re: Across the country in a 73 Wagon
PostPosted: Mon Apr 22, 2013 10:36 pm
User avatar

Joined: Tue Jun 22, 2010 5:16 am
Posts: 110
Location: Australia
:tu: :tu: :tu:

_________________
http://www.70scoltgalant.com/


Top
 Profile

 Post subject: Re: Across the country in a 73 Wagon
PostPosted: Sat Apr 27, 2013 6:27 pm
User avatar

Joined: Sun Jan 22, 2012 12:17 pm
Posts: 148
Location: Indiana
went out exploring with the lady




_________________
1973 Mitsubishi Galant Wagon, turbo, 4G63, fuel injected, on work wheels.
1991 Mitsubishi Galant VR4
follow me on instagram: @incorporatedx


Top
 Profile

 Post subject: Re: Across the country in a 73 Wagon
PostPosted: Tue May 07, 2013 5:38 pm
User avatar

Joined: Sun Jan 22, 2012 12:17 pm
Posts: 148
Location: Indiana
the girl and i went out driving around and stopped to take some pics. seems like im better with an iphone than i am with a DSLR these days...






_________________
1973 Mitsubishi Galant Wagon, turbo, 4G63, fuel injected, on work wheels.
1991 Mitsubishi Galant VR4
follow me on instagram: @incorporatedx


Top
 Profile

 Post subject: Re: Across the country in a 73 Wagon
PostPosted: Fri May 17, 2013 7:06 pm
User avatar

Joined: Sun Jan 22, 2012 12:17 pm
Posts: 148
Location: Indiana
converted it to GM MAFT to clear up the engine bay

washed it today.


_________________
1973 Mitsubishi Galant Wagon, turbo, 4G63, fuel injected, on work wheels.
1991 Mitsubishi Galant VR4
follow me on instagram: @incorporatedx


Top
 Profile

 Post subject: Re: Across the country in a 73 Wagon
PostPosted: Sat May 18, 2013 9:31 am
User avatar

Joined: Sun Oct 25, 2009 7:56 pm
Posts: 429
Location: Bellingham, WA
Why not just go SD?

_________________
91 Galant VR4 1350/2000
76 Colt Galant Coupe
75 Colt Galant Wagon
77 Colt Galant Wagon


Top
 Profile

 Post subject: Re: Across the country in a 73 Wagon
PostPosted: Sat May 18, 2013 10:50 am
User avatar

Joined: Sun Jan 22, 2012 12:17 pm
Posts: 148
Location: Indiana
this was cheap and easy. Spend under $80

_________________
1973 Mitsubishi Galant Wagon, turbo, 4G63, fuel injected, on work wheels.
1991 Mitsubishi Galant VR4
follow me on instagram: @incorporatedx


Top
 Profile

 Post subject: Re: Across the country in a 73 Wagon
PostPosted: Sun Jun 09, 2013 11:27 pm

Joined: Mon Feb 04, 2008 3:02 pm
Posts: 35
Location: connersville, in
we need to have a indiana classic import meet ! :mrgreen:
Matt

_________________
71' Celica ST 54k - under rust repair
98' z28 - daily gas hog


Top
 Profile

 Post subject: Re: Across the country in a 73 Wagon
PostPosted: Wed Jun 12, 2013 6:27 am
User avatar

Joined: Sun Jan 22, 2012 12:17 pm
Posts: 148
Location: Indiana
I'm down for that!

Drove up near Detroit for a car show over the weekend and a magazine called Arson Capital did an interview with me and took some shots of my car. :D


_________________
1973 Mitsubishi Galant Wagon, turbo, 4G63, fuel injected, on work wheels.
1991 Mitsubishi Galant VR4
follow me on instagram: @incorporatedx


Top
 Profile

 Post subject: Re: Across the country in a 73 Wagon
PostPosted: Mon Jun 17, 2013 1:07 pm
User avatar

Joined: Sun Jan 22, 2012 12:17 pm
Posts: 148
Location: Indiana
Transmission upgrade time:


Over the weekend I bulked up to the 132 transmission. Details:

Donor: 1988 Mitsubishi Mighty Max, 2 liter, 2 wheel drive, cable driven clutch



Parts needed for swap from my KM119:
-clutch is exedy:
PART NUMBER: MBD901U
DISC DIAMETER: 9-1/16" (225 mm)
SPLINE DIAMETER: 1" (25.4 mm)
SPLINE COUNT: 23 spline teeth
-KM132 trans
-early evo/gvr4/eclipse flywheel machined for pilot bearing
-early evo/gvr4/eclipse pressure plate
-mighty max pilot bearing
-clutch disc from v6 eclipse (listed above) disc spline is different diameter and number than the early evo/gvr4/eclipse
depending on the year of the transmission you may need the front yoke of them mighty max driveshaft 86 or older, same as colt, 86 or newer, larger diameter. Mighty max driveshafts have the same diff mounting flange though so instead of swapping the yoke you could have a driveshaft shop shorten the mighty max driveshaft (beefier tube but too long) otherwise, it's a good chance to replace the ujoints in your stock driveshaft (same as mighty max)

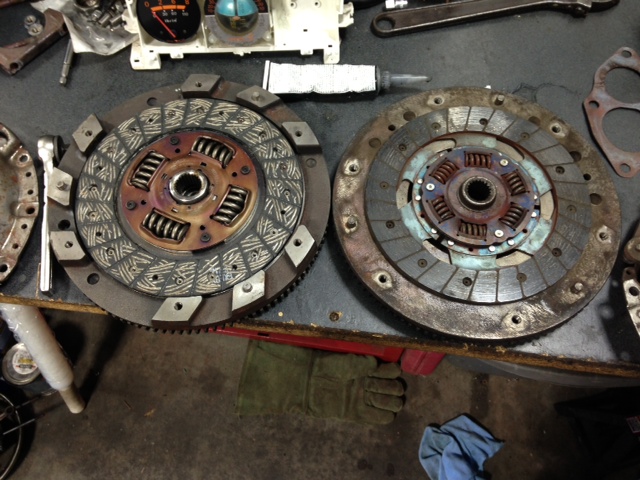

difference between KM132 (left) and KM119 (right) clutches. Oddly enough the clutch was likely slipping due to 3 of the pressure plate bolts being loose, i had been running solid motor mounts for a few months (as in solid steel to chassis) and im guessing it rattled some shit loose. So the clutch might hold up to more than I thought.

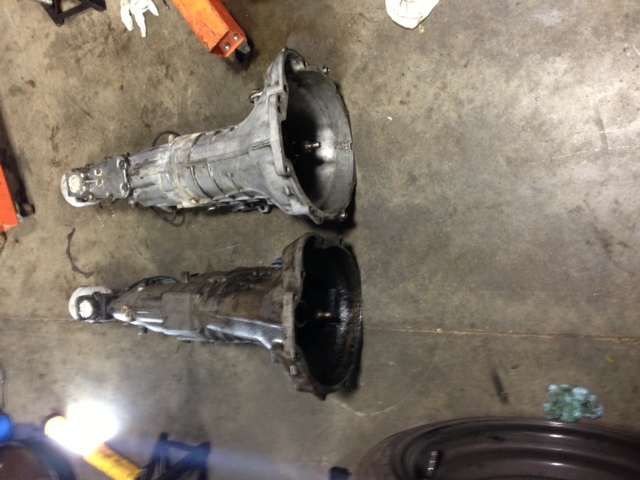

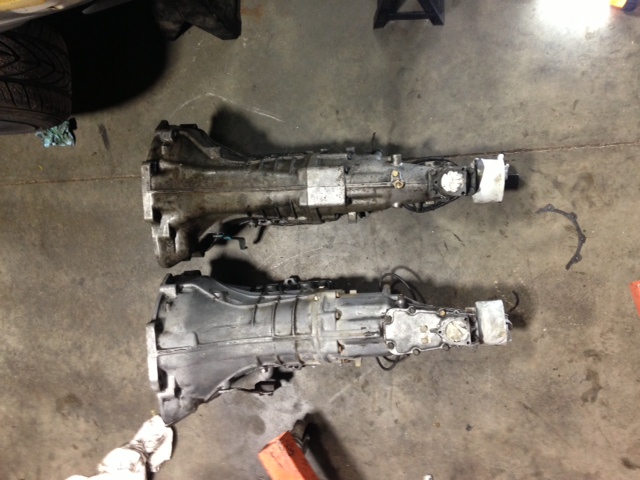

The first thing you notice when comparing the KM119 to the KM132 is just how small the KM119 is, it's obviously the dirty one (oil leak from back of valve cover) but it's very narrow compared to the 132.

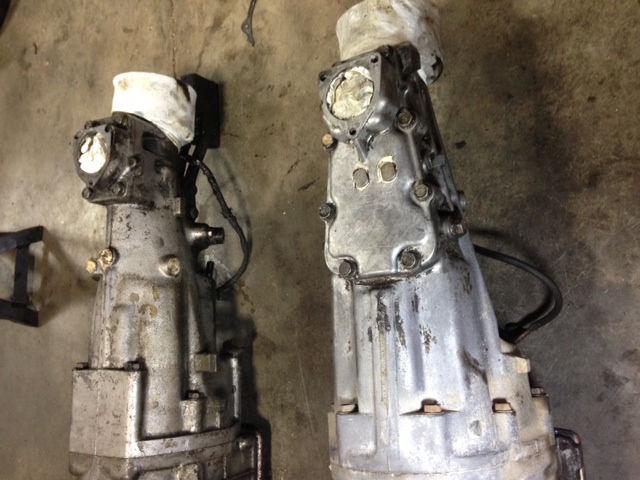

this is another dead give away for which trans you have, note; shifter location and overall length of transmission is still identical to the KM119

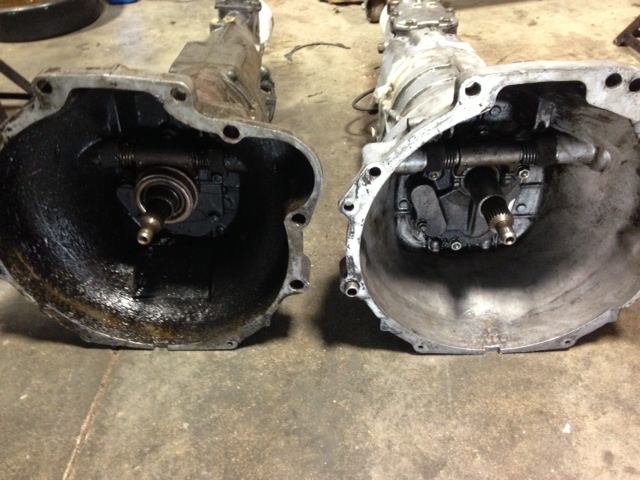

here the only difference to note is the different input shaft diameters:

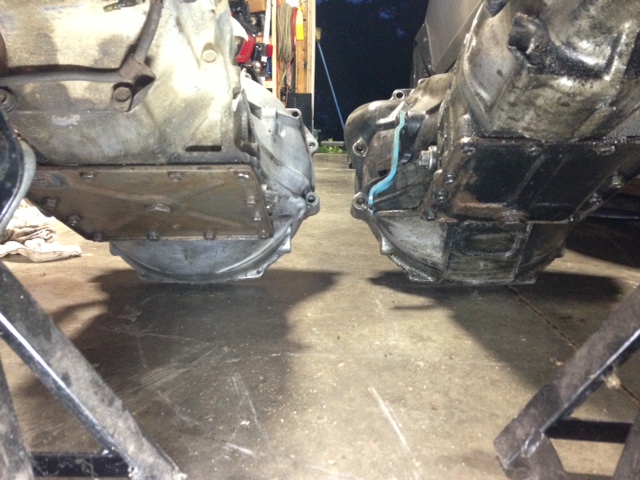

Also note: the trans pans are different, so a Tuffpans reinforcement plate for a 132 wont work on a 119

All in all, start to finish, it was a single day project, the KM119 has no bearing play, fluid looks good and the clutch was likely slipping due to loose pressure plate bolts, it's currently unknown how much power a KM119 will hold, my room mate might put the trans into something and Im certain we will soon find out how easily a KM119 does break. :thumpsup:

_________________
1973 Mitsubishi Galant Wagon, turbo, 4G63, fuel injected, on work wheels.
1991 Mitsubishi Galant VR4
follow me on instagram: @incorporatedx


Top
 Profile

 Post subject: Re: Across the country in a 73 Wagon
PostPosted: Mon Sep 23, 2013 6:13 am
User avatar

Joined: Sun Jan 22, 2012 12:17 pm
Posts: 148
Location: Indiana










_________________
1973 Mitsubishi Galant Wagon, turbo, 4G63, fuel injected, on work wheels.
1991 Mitsubishi Galant VR4
follow me on instagram: @incorporatedx


Top
 Profile

 Post subject: Re: Across the country in a 73 Wagon
PostPosted: Mon Sep 23, 2013 12:30 pm

Joined: Tue Aug 10, 2010 1:57 pm
Posts: 2
Location: Belgium
Nice ride!

And very interesting write-up about the gearboxes! Thanks! Maybe you can also post this on SG?


Top
 Profile

 Post subject: Re: Across the country in a 73 Wagon
PostPosted: Mon Sep 23, 2013 5:40 pm
User avatar

Joined: Sun Jan 22, 2012 12:17 pm
Posts: 148
Location: Indiana
I posted it on SG in the trans tech section. No one over there gave a crap :roll:

_________________
1973 Mitsubishi Galant Wagon, turbo, 4G63, fuel injected, on work wheels.
1991 Mitsubishi Galant VR4
follow me on instagram: @incorporatedx


Top
 Profile

 Post subject: Re: Across the country in a 73 Wagon
PostPosted: Mon Sep 23, 2013 6:31 pm
Moderator
User avatar

Joined: Fri Oct 12, 2007 8:57 pm
Posts: 8459
Location: Fort Worth, TX, USA

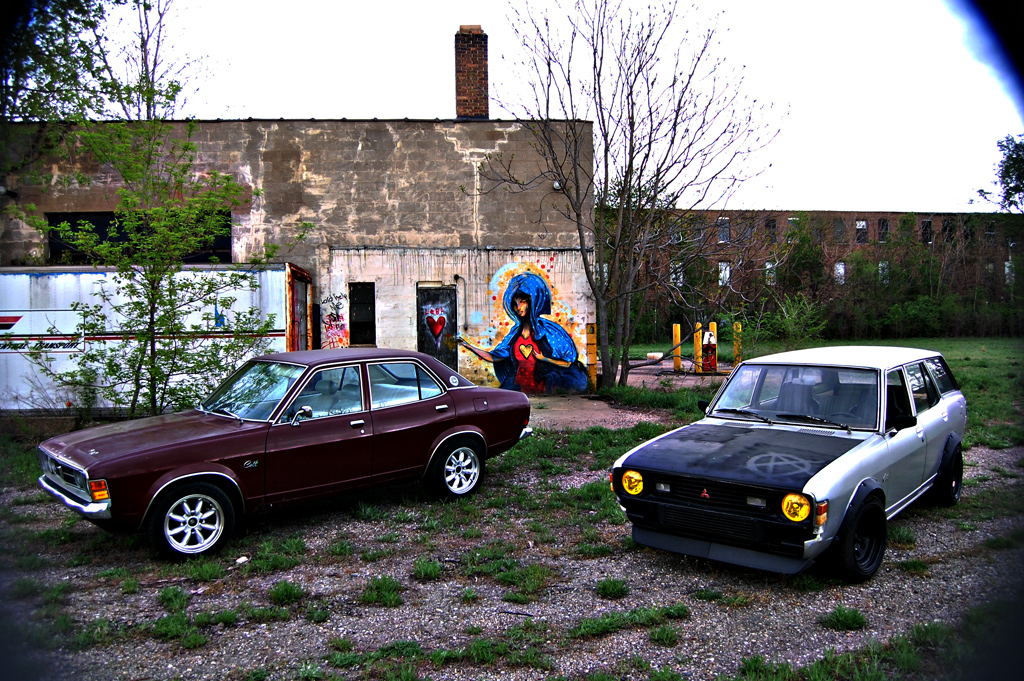

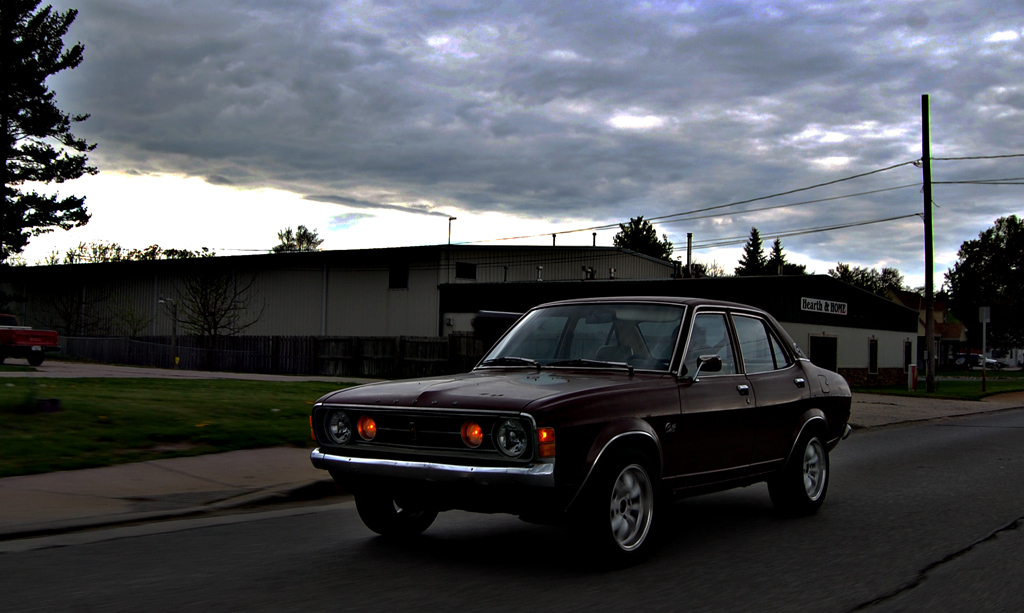

Does your lady drive the 4dr?


Top
 Profile

 Post subject: Re: Across the country in a 73 Wagon
PostPosted: Tue Sep 24, 2013 4:17 am

Joined: Tue Aug 10, 2010 1:57 pm
Posts: 2
Location: Belgium
incorporatedx wrote:
I posted it on SG in the trans tech section. No one over there gave a crap :roll:


pitty, because I had a question about the differences a while ago, but it was in the chatroom of SG. I wasn't sure which one I have but thanks to your write up here I now know for sure it's a KM132.


Top
 Profile

 Post subject: Re: Across the country in a 73 Wagon
PostPosted: Wed Sep 25, 2013 7:56 am
User avatar

Joined: Sun Jan 22, 2012 12:17 pm
Posts: 148
Location: Indiana
john wrote:
Does your lady drive the 4dr?



Yessir, all summer long. :tu:

_________________
1973 Mitsubishi Galant Wagon, turbo, 4G63, fuel injected, on work wheels.
1991 Mitsubishi Galant VR4
follow me on instagram: @incorporatedx


Top
 Profile

 Post subject: Re: Across the country in a 73 Wagon
PostPosted: Wed Sep 25, 2013 7:59 am
User avatar

Joined: Sun Jan 22, 2012 12:17 pm
Posts: 148
Location: Indiana
Blue_Thunderke wrote:
incorporatedx wrote:
I posted it on SG in the trans tech section. No one over there gave a crap :roll:


pitty, because I had a question about the differences a while ago, but it was in the chatroom of SG. I wasn't sure which one I have but thanks to your write up here I now know for sure it's a KM132.



that chat should be removed, it does no one any good, doesnt archive information and can't be searched. just a waste of space and info.

_________________
1973 Mitsubishi Galant Wagon, turbo, 4G63, fuel injected, on work wheels.
1991 Mitsubishi Galant VR4
follow me on instagram: @incorporatedx
